OPEN BOX SPECIAL - Talon High Speed Remote Head - Complete Full System
Open Box SPECIAL! A like new, fully refurbished system. Normal system costs $35,000+. This system was not the right fit for the original owner, so now it’s at a discount for you!
A full Talon High Speed Head System, complete with a Talon with a 2 in. Riser Block, MKI Console with NODO input, adapter for High Speed Mode using battery packs, and accessories needed to start operating right out of the box. Case has wheels and a pull-out handle for easy transport.
This Talon features a custom High Current Camera Power Pass-Through with High Current Slip-Rings, capable of supplying 15 Amps though the head. Connection is through two 3-Pin XLRs, a male input on the base of the head and a female output on the Tilt Axis.

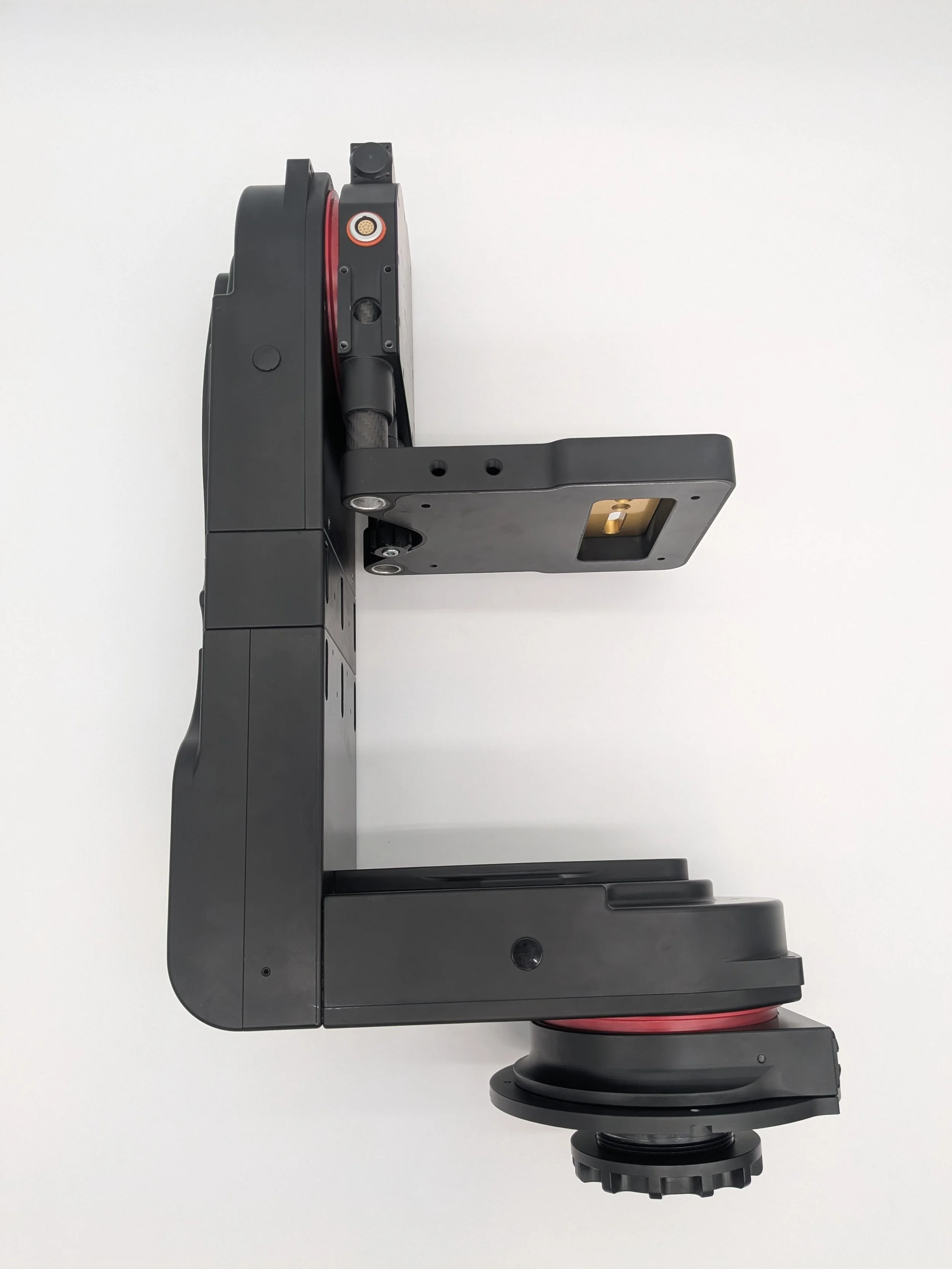

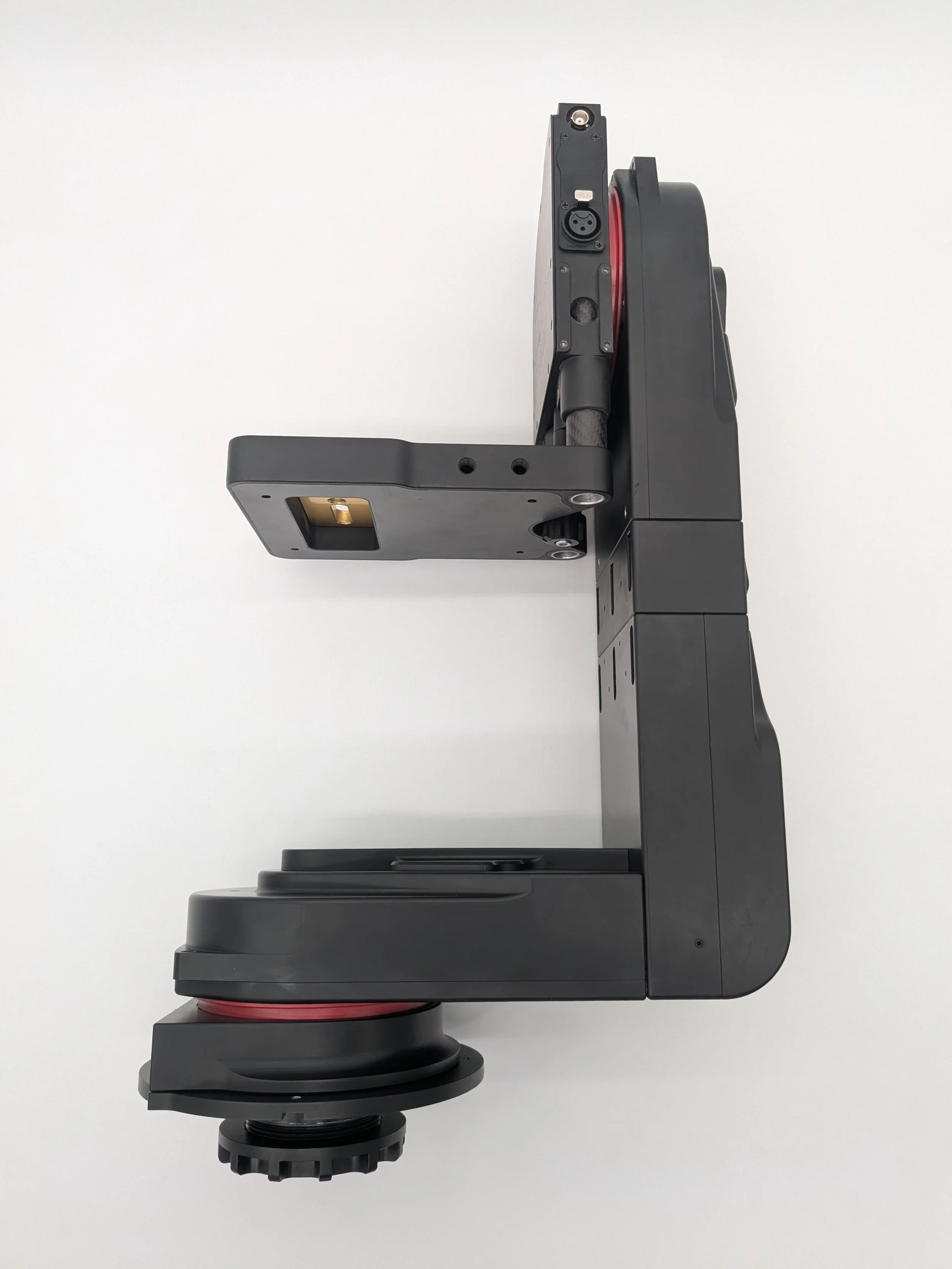

Based on our flagship two axis pan/tilt remote head, the Talon High Speed is our fastest head with maximum speeds of 300 deg/sec. Slip-rings allow continuous movement on both the Pan and Tilt Axes. The head is equipped with our High Capacity Support Bearing Upgrade, providing increased stability at those high speeds. The capacity of the Talon High Speed is thirty-five pounds in High Speed Mode, and sixty-five pounds in Standard Mode. Cradle upgradeable, with more Riser Blocks available separately. The Camera Plate is height adjustable with lockdown bolts and a thumbscrew. There is a Lens Control Port with the Camera Power Pass-Through on the Tilt Axis.
Included with the basic system is the Mark One, our basic play-repeat console. Featuring a 2.75” blue LCD display, this console can display degree position of both axes as well as display zoom and focus positions. Zoom and focus are controllable via joystick twist and an encoded knob, respectively, or through the Lens Control port. Easily record takes/moves and marks with this console and play them back all day long. The setting of smoothing, speeds, position or velocity mode, analog lens voltages, and more are possible with the Mark One.
The Mark One has a Control port for head control, a PanBar/Wheels port for handwheels, a Lens Control port for lens control input, a Serial Set Streaming port for computer integration, and a port for input from NODO Film System’s Inertia Wheels. Optional ports for BLOOP and more are available for an additional cost, upon request.
Purchase of this system includes a Lens Control Cable, please specify when adding to cart. Additional Lens Control Cables are available separately.
Talon High Speed Specs:
Weight: 25 lbs
Capacity: 35 lbs, High Speed / 65lbs, Standard Speed
Speed: 300 deg/sec MAX on 33 VDC
Overslung and Underslung Capable
Voltage: 33 VDC, High Speed / 24 VDC, Standard Speed
Amperage: <6 Amps
Package Contents:

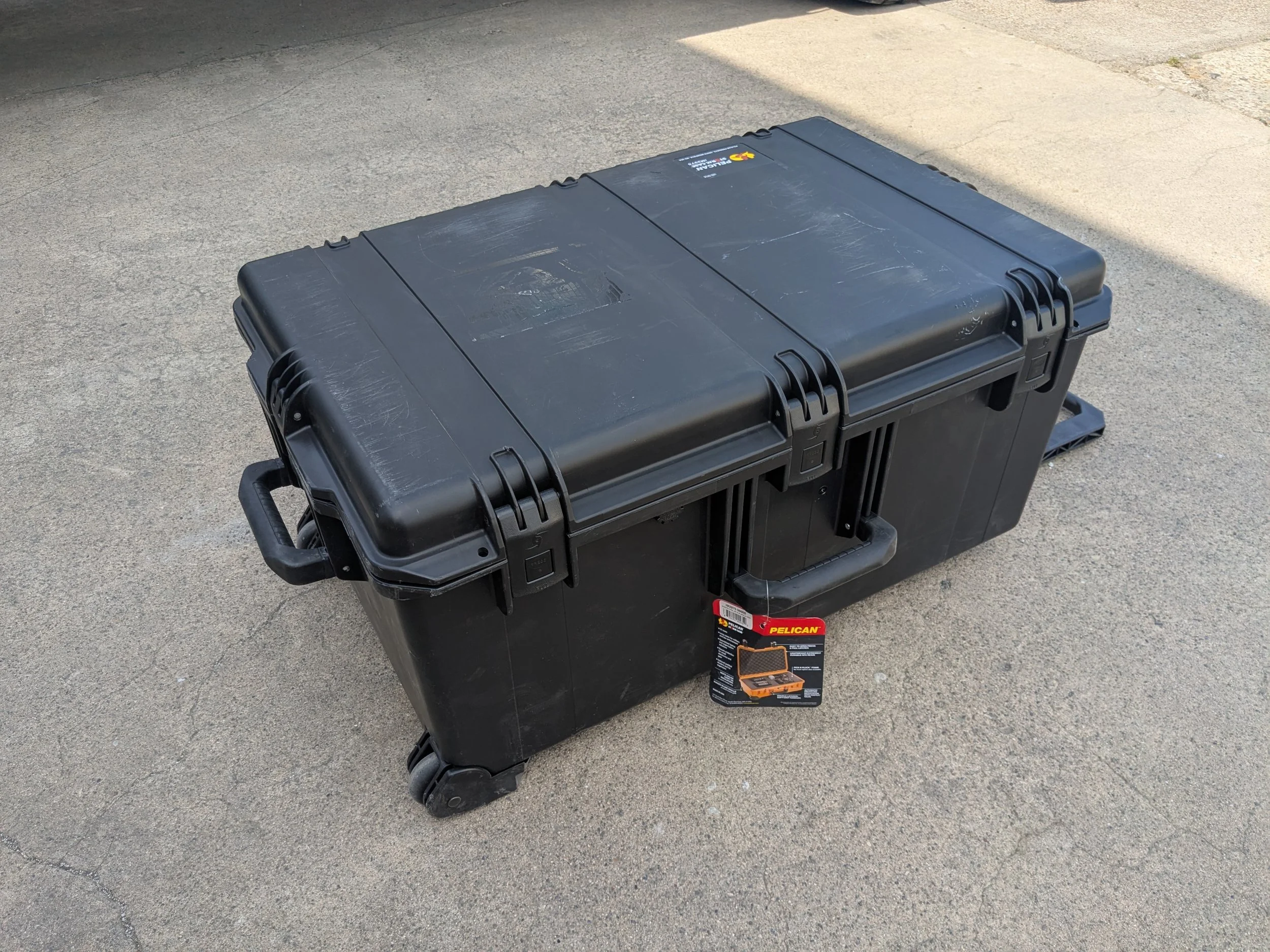

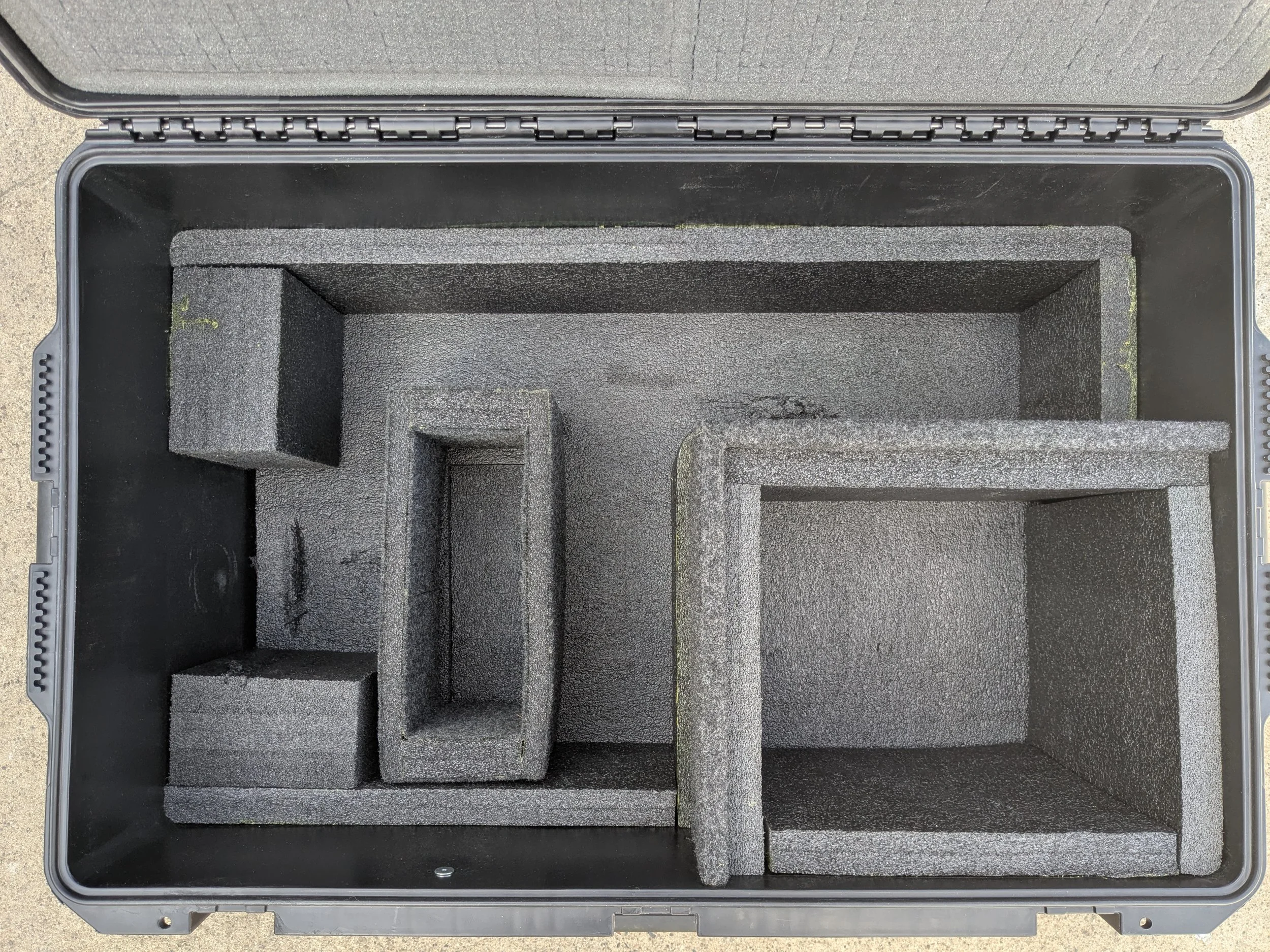

Rolling Hard Case with Foam Insert

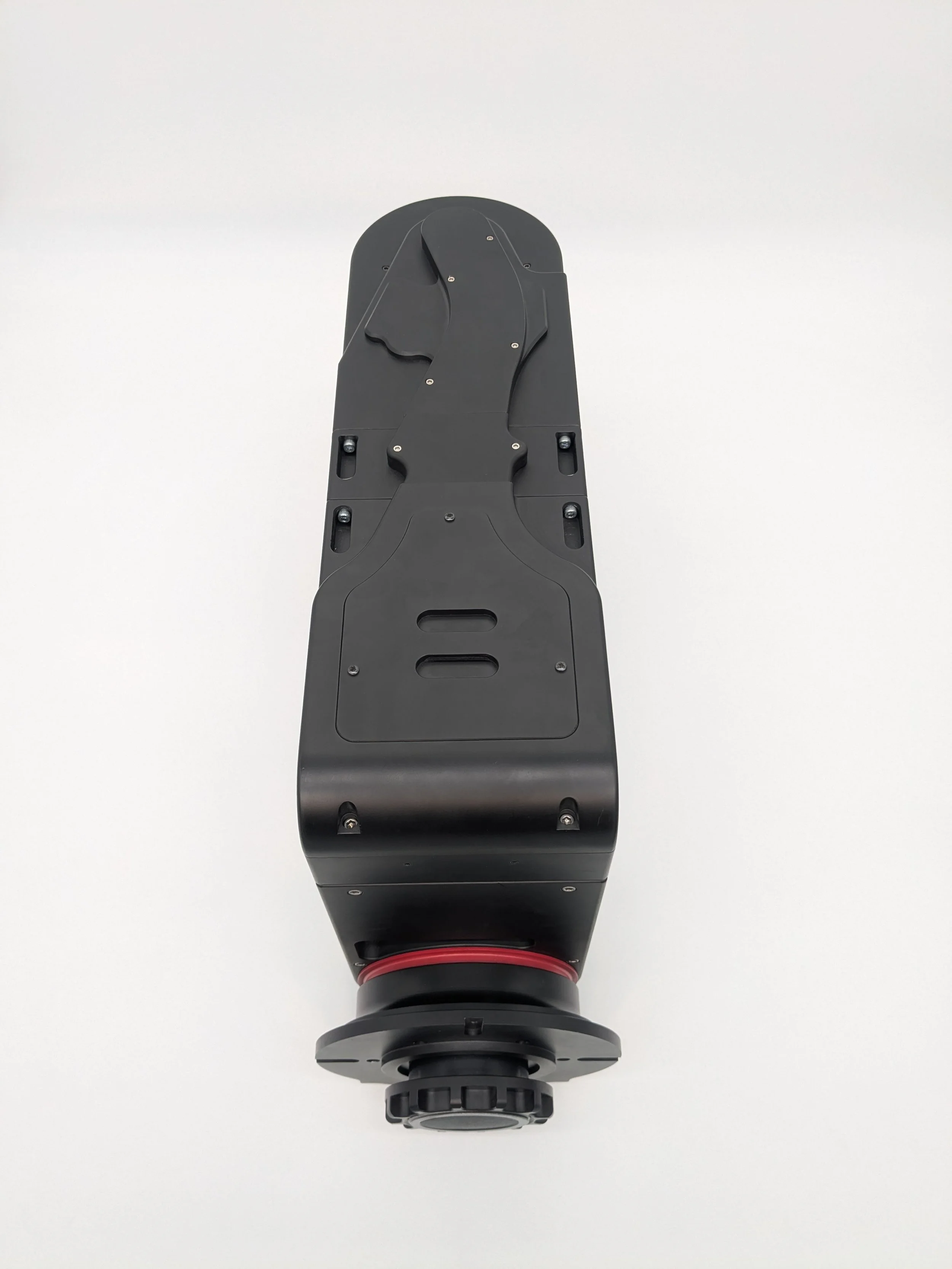

Talon High Speed Head, with 2” Riser, Full Mitchell Plate, and custom Camera Power Pass-Through
MKI Standard Controller, with NODO Inertia Wheels input

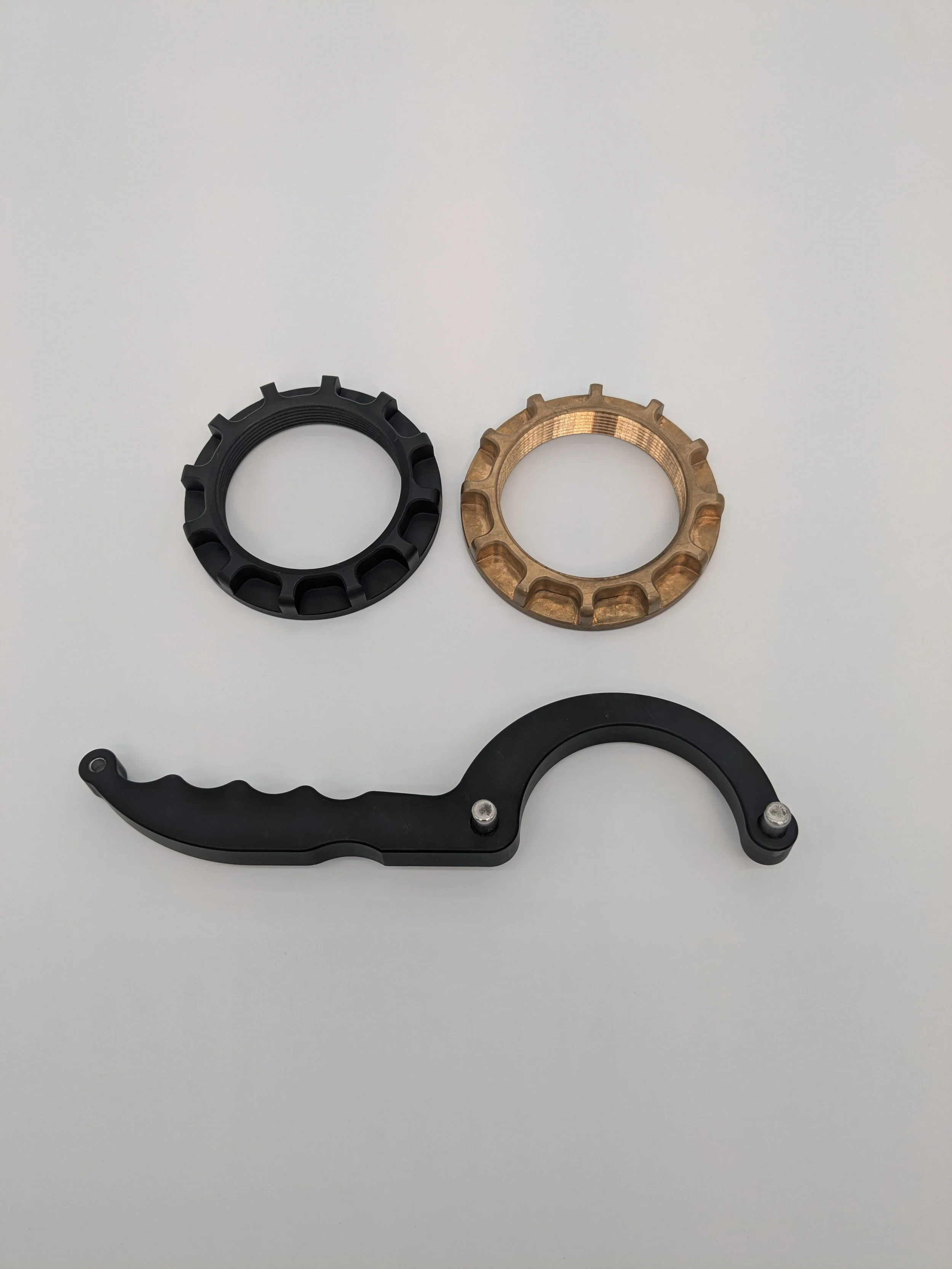

Mitchel Nut & Wrench
Additional Heavy Duty Brass Mitchell Nut

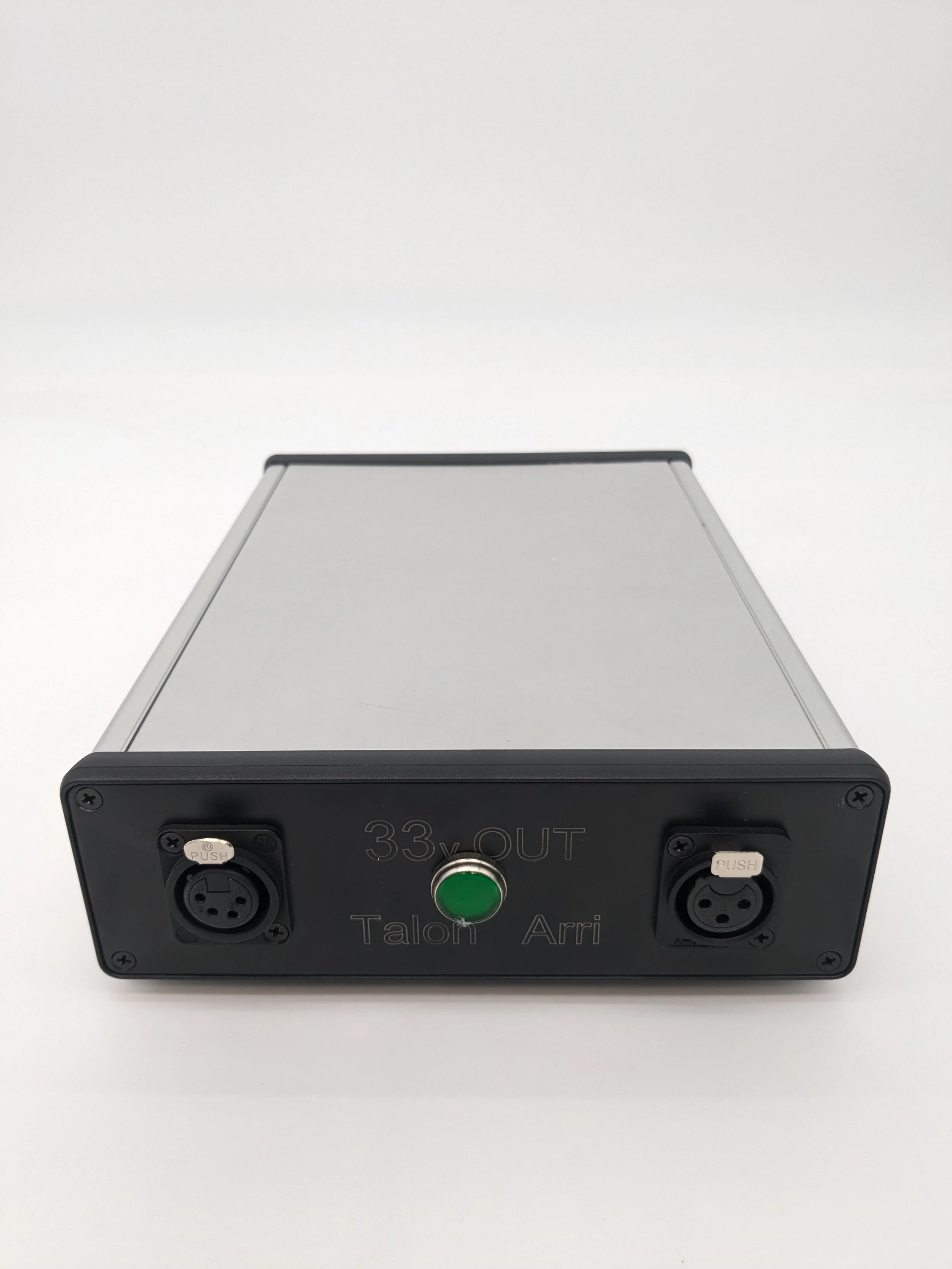

DC-DC Power Regulator (Input for two VCLX battery packs, output of 33V for High Speed)

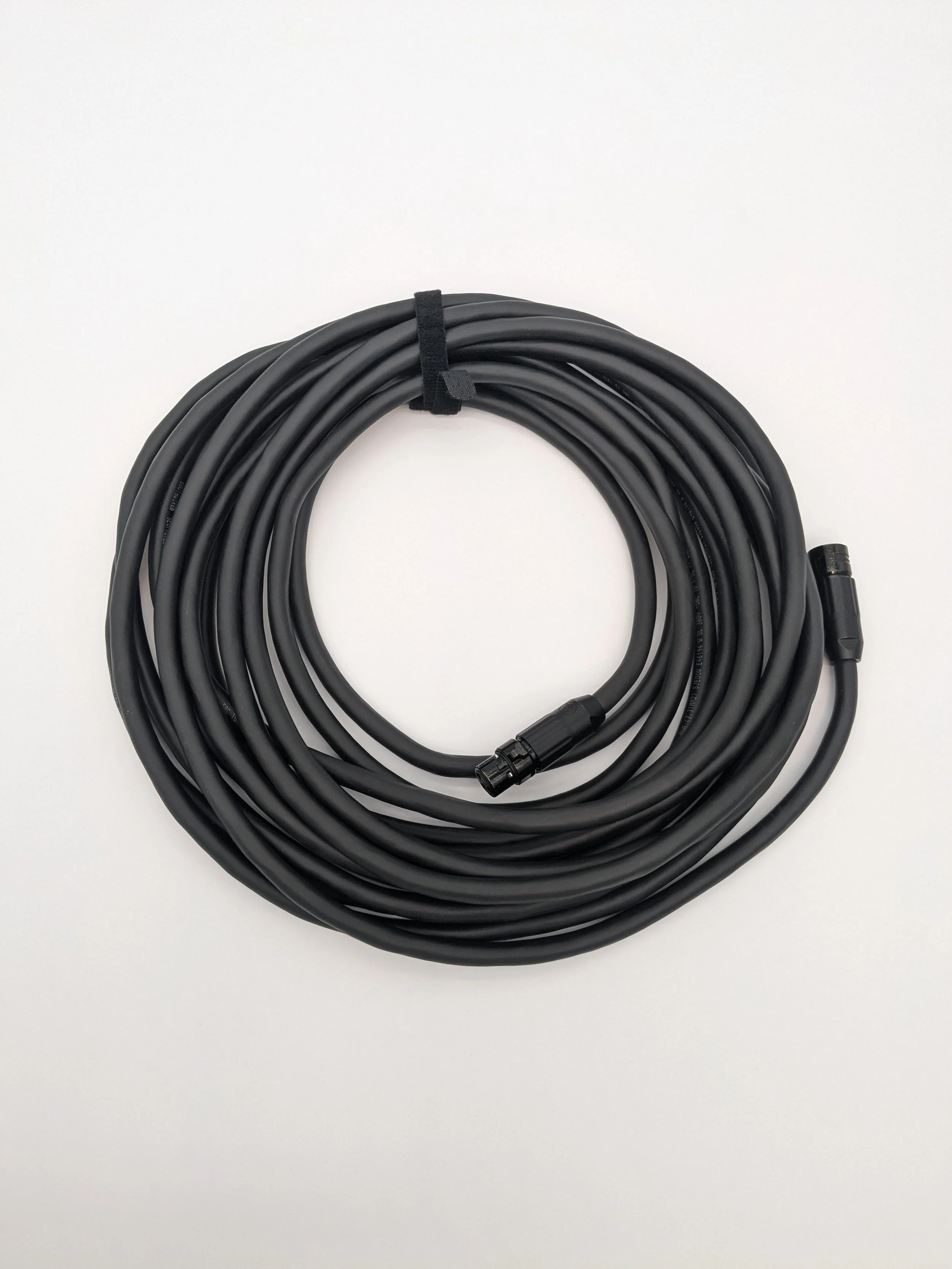

12ft NODO Interconnect Cable
50ft Control Cable
30ft Power Cable
30ft 3-Pin XLR Camera Power Cable

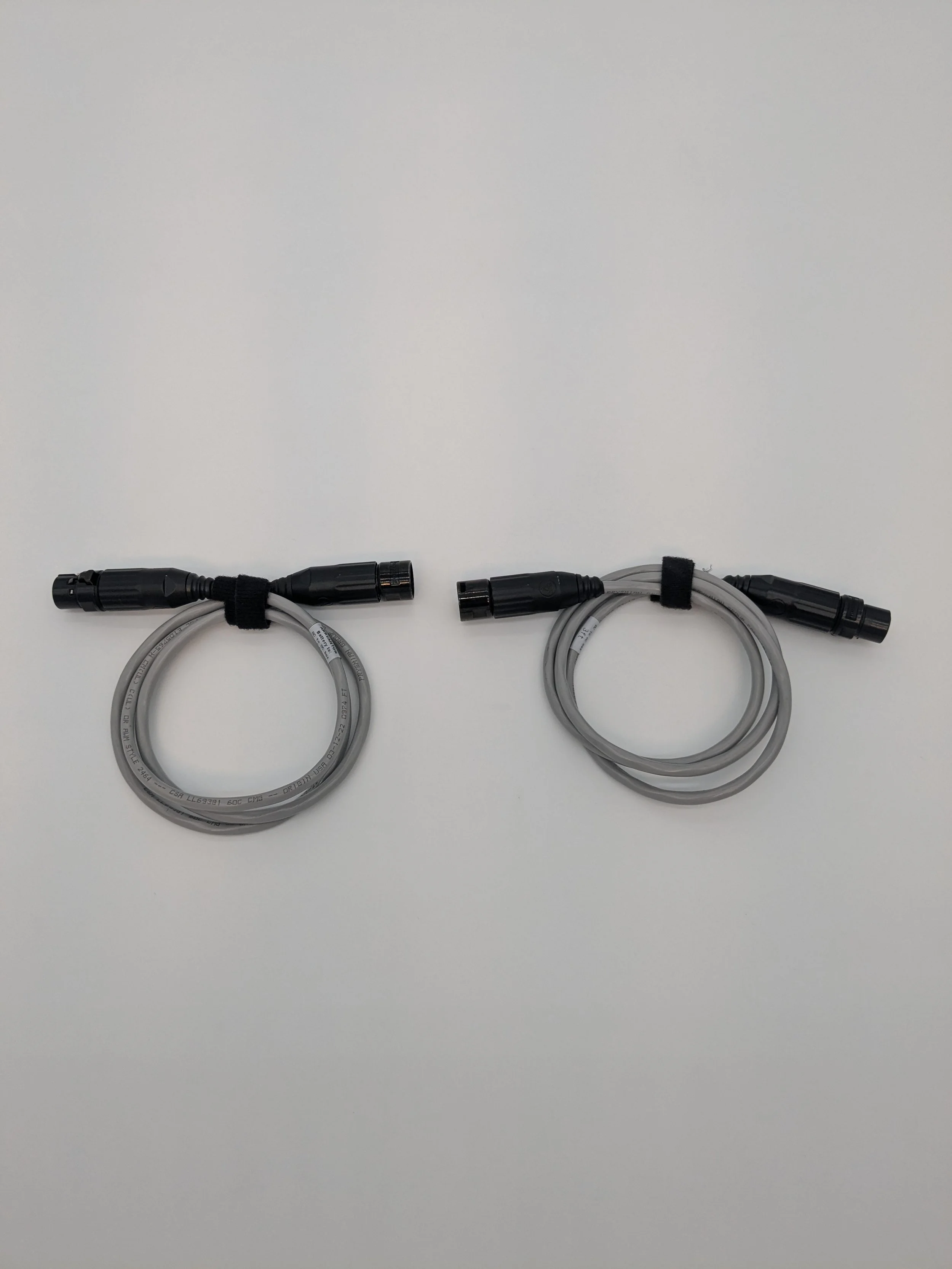

(2×) 3-Pin XLR to 3-Pin XLR ARRI Battery Cables
3ft ARRI Camera Power Cable, 8-Pin 2B LEMO to 3-Pin XLR
Canon or Fujinon Analog or Digital Lens Cable (Please specify.)
